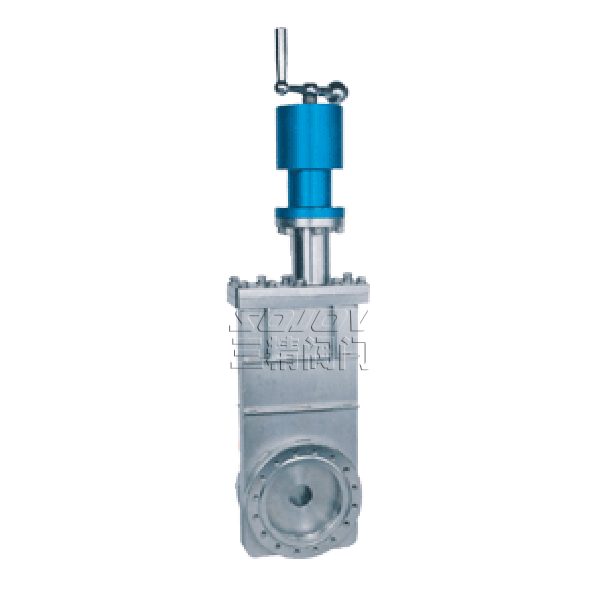

CC超高真空插板阀

CC型手动超高真空插板阀是以手柄带动阀板作上下运动使阀板开启或关闭。阀门用于接通或切断真空管路中的气流。
上一个产品:DYC-JQ电磁真空压差阀
分享到:

三精阀门CC超高真空插板阀可定制CC超高真空插板阀



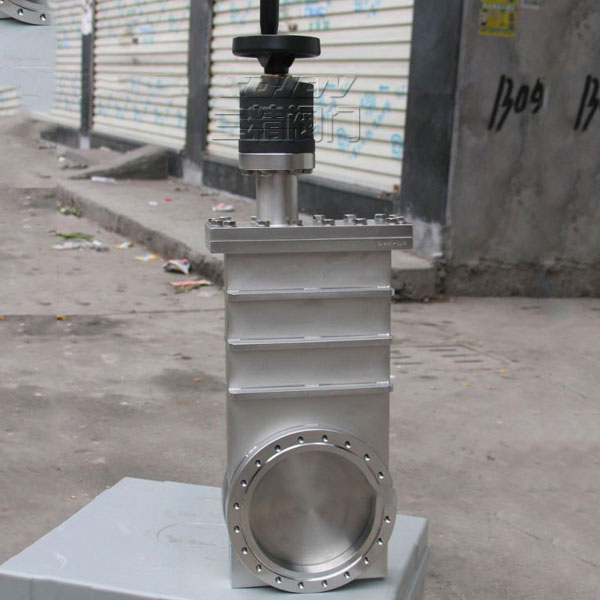

CC超高真空插板阀概述

CC Manual Ultra-high Vacuum Gate Valve

CC型手动超高真空插板阀是以手柄带动阀板作上下运动使阀板开启或关闭。阀门用于接通或切断真空管路中的气流。适用介质为纯净空气和非腐蚀性气体。

CC manual ultra-high vacuum gate valve uses a handle to drive valve disc up and down to perform open and close action. It is used to put through or cut off the airflow in vacuum pipeline.
Applicable medium can be pure air and noncorrosive gases.

CC超高真空插板阀主要技术性能

Main Technical Performance

 适用范围:Applicability  105~1.3×10-7Pa
 阀门漏率:Valve Leak Rate  ≤1.3×10-7Pa.L/S.
 适用温度:Applicable Temperature  -30~+150℃
 阀门开启时阀板两侧的压差:
The differential pressure between the two sides of valve disc upon valve opening:
 ≤2.7×103Pa.

CC超高真空插板阀主要零件材料

Materials of Main Parts

阀体、阀板:不锈钢
密封件:氟橡胶、波纹管(轴封)、丁腈橡胶。

Body, and disc: stainless steel
Sealing element: Viton, bellows(shaft seal), NBR

CC超高真空插板阀外形及连接尺寸(mm)

Overall and Connection Dimensions(mm)

Model
型号
DN A H D Do D1 D2 D3 L L1 G E n-d 法兰标准
CC-50 50 60 92 89 72.4 61.6 55.6 515 153 220 124 8-M8 GB6071
CC-63 63 65 105 114 92.1 82.6 76.6 566 180 220 124 8-M8
CC-80 80 65 130 130 110 99 93 603 200 220 124 16-M8
CC-100 100 70 152 152 130.2 120.7 114.7 653 267 220 124 16-M8
CC-150 150 70 202 202 181 171.5 165.5 771 350 270 150 20-M8
CC-200 200 80 251 253 231.8 222.3 216.6 889 424 270 150 24-M8
CC-250 250 85 300 314 288 308 275 271 1127 550 298 200 24-M10 JB5278
CC-300 300 85 352 365 338 353 323 318 1197 613 298 200 32-M10
CC-320 320 85 372 385 357 379 344 340 1197 613 298

200

36-M10 JB5278
