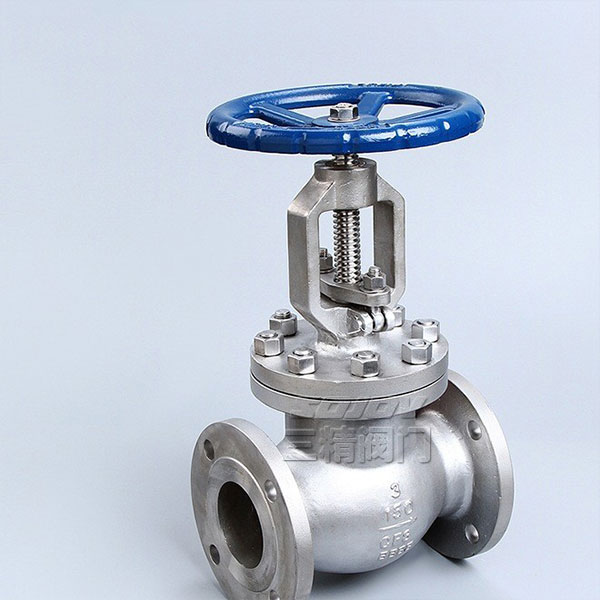

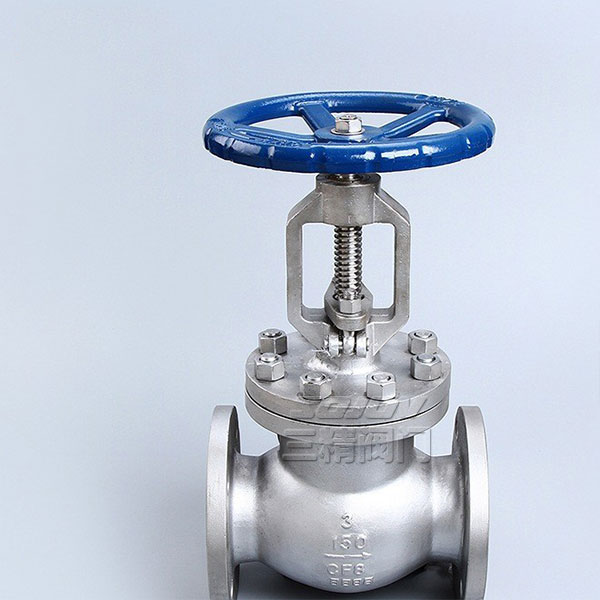

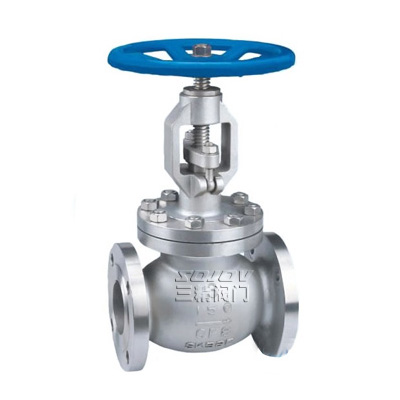

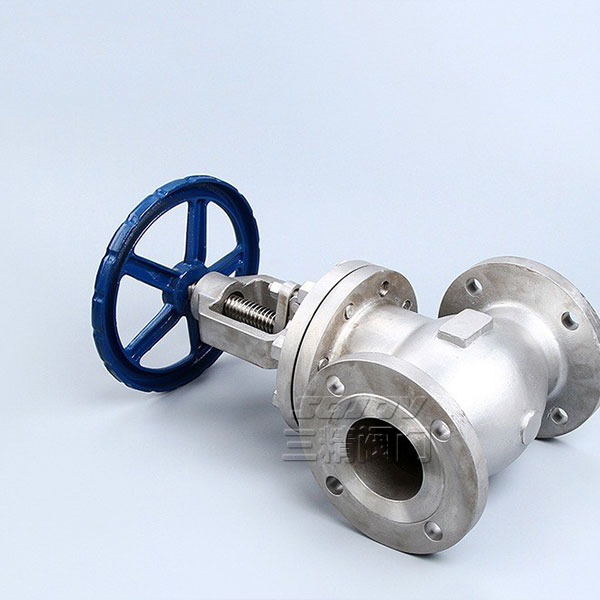

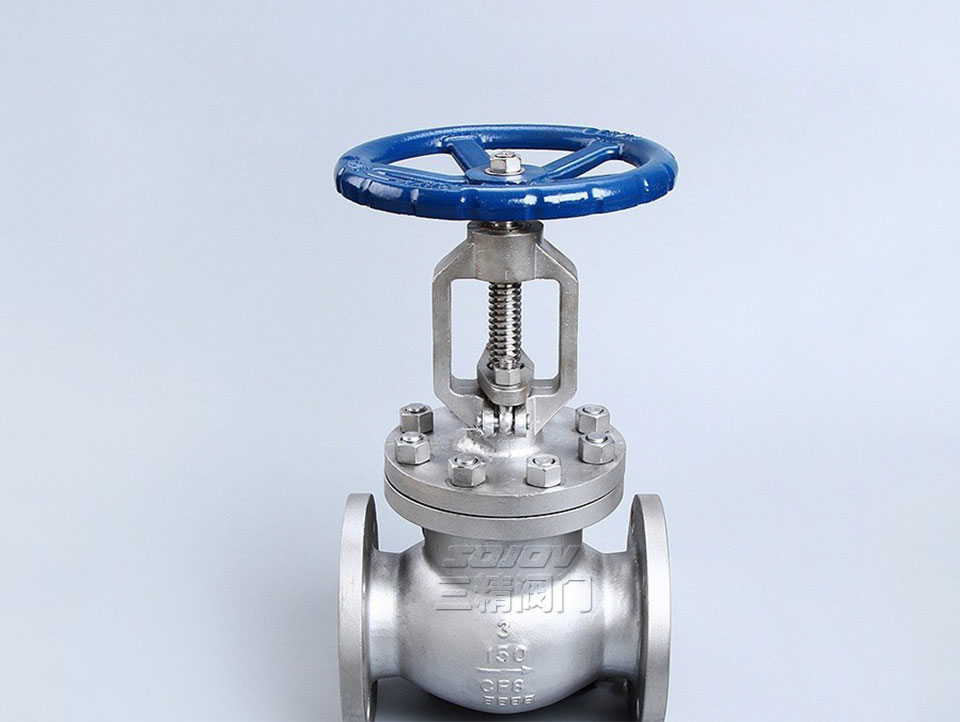

J41W美标不锈钢截止阀
品牌：三精阀门
设计制造按：API STD.600
结构长度按：ANSI B16.10
法兰型式及尺寸：150/300/600Lb按ANSI B16.5 JIS 10K、20K按JIS B2212~2214
阀门检查和试验按：API STD.598
下一个产品：J41Y高压不锈钢截止阀
上一个产品：Z11W螺纹不锈钢闸阀
J41W美标不锈钢截止阀应用规范 Application Norm
1、设计制造按API STD.600
Design Manafacfure According to API STD.600
2、结构长度按ANSI B16.10
Face to Face According to ANSI B16.10
3、法兰型式及尺寸：150/300/600Lb按ANSI B16.5 JIS 10K、20K按JIS B2212~2214
150/300/600Lb End Flange Dimension According to ANSI B16.10 Accoring to JIS B2212-B2214
4、阀门检查和试验按API STD.598
Valve Check and Test According to API 598
J41W美标不锈钢截止阀结构 Structure
B.B; OS & Y Characteristic:B.B; OS & Y
主要零件材料 Main parts and materials
|
零件名称 ltem
|
CF8系列
|
CF3系列
|
CF8M系列
|
CF3M系列
|
321系列
|
|
阀体/阀盖Body/Cap
|
CF8
|
CF3
|
CF8M
|
CF3M
|
0Cr18Ni10Ti
|
|
阀瓣 Disc
|
F304
|
F304L
|
F316
|
F316L
|
321
|
|
阀瓣盖 Disc Flange
|
304
|
304L
|
316
|
316L
|
321
|
|
阀杆Stem
|
F304
|
F304L
|
F316
|
F316L
|
321
|
|
填料Packing
|
PTFE编织Weaving
|
PTFE编织Weaving
|
PTFE编织Weaving
|
PTFE编织Weaving
|
PTFE编织Weaving
|
|
垫片Gasket
|
PTFE+304
|
PTFE+304L
|
PTFE+316
|
PTFE+316L
|
PTFE+321
|
|
压盖Gland flange
|
CF8
|
CF3
|
CF8M
|
CF3M
|
0Cr18Ni10Ti
|
|
填料压环Stuffing ring
|
304
|
304L
|
316
|
316L
|
0Cr18Ni10Ti
|
|
螺栓Bolt
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
|
螺母Nut
|
A194-8M
|
A194-8M
|
A194-8M
|
A194-8M
|
A194-8M
|
150Lb、10K主要连接尺寸及重量
Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
|
L
|
mm
|
108
|
117
|
127
|
140
|
165
|
203
|
216
|
241
|
292
|
356
|
406
|
495
|
622
|
698
|
|
H
|
mm
|
241
|
241
|
242
|
280
|
286
|
386
|
387
|
411
|
454
|
455
|
541
|
651
|
802
|
970
|
|
D
|
mm
|
125
|
125
|
125
|
160
|
160
|
200
|
200
|
250
|
250
|
355
|
355
|
450
|
500
|
500
|
|
重量
wight |
kg
|
-
|
-
|
-
|
-
|
-
|
18
|
30
|
41
|
64
|
86
|
113
|
115
|
295
|
450
|
300Lb、20K主要连接尺寸及重量 Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
|
L
|
mm
|
152
|
178
|
203
|
216
|
229
|
267
|
295
|
318
|
356
|
400
|
444
|
559
|
622
|
711
|
|
H
|
mm
|
241
|
241
|
283
|
320
|
322
|
399
|
438
|
464
|
565
|
614
|
717
|
930
|
1150
|
1420
|
|
D
|
mm
|
125
|
125
|
160
|
200
|
200
|
200
|
250
|
280
|
355
|
400
|
450
|
500
|
500
|
560
|
|
重量
wight |
kg
|
-
|
-
|
-
|
-
|
-
|
25
|
30
|
35
|
56
|
96
|
120
|
212
|
460
|
615
|
600Lb主要连接尺寸及重量
Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
|
L
|
mm
|
165
|
190
|
216
|
229
|
241
|
292
|
330
|
356
|
432
|
508
|
559
|
660
|
787
|
838
|
|
H
|
mm
|
156
|
161
|
187
|
214
|
252
|
430
|
480
|
530
|
650
|
750
|
850
|
1050
|
280
|
1535
|
|
D
|
mm
|
100
|
100
|
125
|
160
|
160
|
180
|
250
|
250
|
350
|
350
|
450
|
500
|
560
|
650
|
|
重量
wight |
kg
|
-
|
-
|
-
|
-
|
-
|
35
|
50
|
60
|
110
|
200
|
230
|
410
|
770
|
1140
|
